Rancang bangun sistem monitoring pada gardu distribusi jaringan tegangan rendah berbasis Internet Of Things (IoT)

Maulana, Alan (2025) Rancang bangun sistem monitoring pada gardu distribusi jaringan tegangan rendah berbasis Internet Of Things (IoT). Sarjana thesis, UIN Sunan Gunung Djati Bandung.

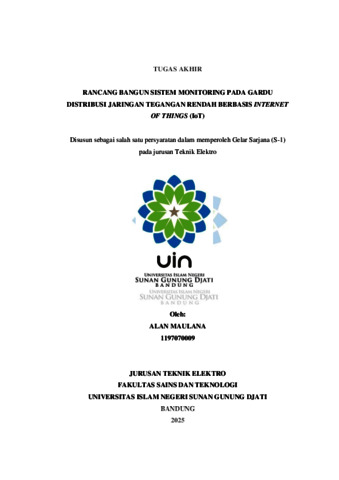

Preview	Text (COVER) 1_cover.pdf Download (88kB) | Preview

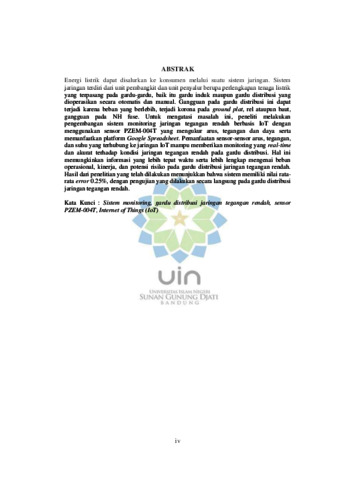

Preview	Text (ABSTRAK) 2_abstrak.pdf Download (62kB) | Preview

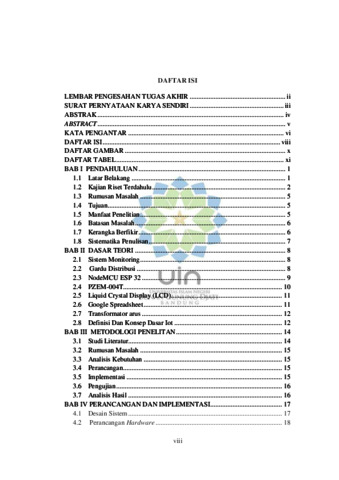

Preview	Text (DAFTAR ISI) 3_daftarisi.pdf Download (68kB) | Preview

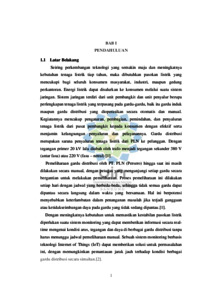

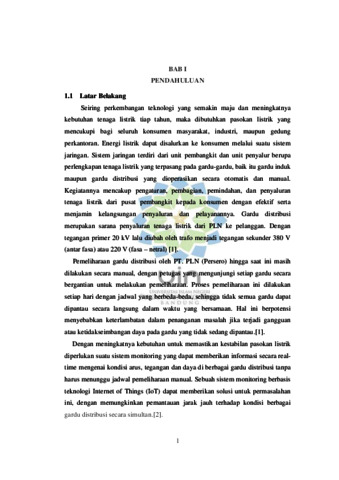

Preview	Text (BAB I) 4_bab1.pdf Download (165kB) | Preview
	Text (BAB II) 5_bab2.pdf Restricted to Registered users only Download (151kB) | Request a copy
	Text (BAB III) 6_bab3.pdf Restricted to Registered users only Download (104kB) | Request a copy
	Text (BAB IV) 7_bab4.pdf Restricted to Registered users only Download (928kB) | Request a copy
	Text (BAB V) 8_bab5.pdf Restricted to Registered users only Download (165kB) | Request a copy
	Text (BAB VI) 9_bab6.pdf Restricted to Registered users only Download (63kB) | Request a copy
	Text (DAFTAR PUSTAKA) 10_daftarpustaka.pdf Restricted to Registered users only Download (126kB) | Request a copy
	Text (LAMPIRAN) 11_lampiran.pdf Restricted to Registered users only Download (286kB) | Request a copy

Abstract

INDONESIA: Energi listrik dapat disalurkan ke konsumen melalui suatu sistem jaringan. Sistem jaringan terdiri dari unit pembangkit dan unit penyalur berupa perlengkapan tenaga listrik yang terpasang pada gardu-gardu, baik itu gardu induk maupun gardu distribusi yang dioperasikan secara otomatis dan manual. Gangguan pada gardu distribusi ini dapat terjadi karena beban yang berlebih, terjadi korona pada ground plat, rel ataupun baut, gangguan pada NH fuse. Untuk mengatasi masalah ini, peneliti melakukan pengembangan sistem monitoring jaringan tegangan rendah berbasis IoT dengan menggunakan sensor PZEM-004T yang mengukur arus, tegangan dan daya serta memanfaatkan platform Google Spreadsheet. Pemanfaatan sensor-sensor arus, tegangan, dan suhu yang terhubung ke jaringan IoT mampu memberikan monitoring yang real-time dan akurat terhadap kondisi jaringan tegangan rendah pada gardu distribusi. Hal ini memungkinkan informasi yang lebih tepat waktu serta lebih lengkap mengenai beban operasional, kinerja, dan potensi risiko pada gardu distribusi jaringan tegangan rendah. Hasil dari penelitian yang telah dilakukan menunjukkan bahwa sistem memiliki nilai rata-rata error 0.25%, dengan pengujian yang dilakukan secara langsung pada gardu distribusi jaringan tegangan rendah. ENGLISH: Electric power can be distributed to consumers through a network system. The network system consists of generation units and distribution equipment installed at substations, both primary and distribution substations, which are operated either automatically or manually. Disturbances in the distribution substation can occur due to excessive load, corona on ground plates, rails, or bolts, and faults in the NH fuse. To address these issues, the researcher has developed an IoT-based monitoring system for low-voltage networks using the PZEM-004T sensor to measure current and voltage, while utilizing the Google Sheets platform. The use of current, voltage, and temperature sensors connected to an IoT network allows for real-time and accurate monitoring of the low-voltage network conditions at distribution substations. This enables more timely and complete information about operational loads, performance, and potential risks in the low-voltage distribution network. The results of the research show that the system has an average error of 0.25%, based on testing conducted in a simulated environment rather than directly on a low-voltage distribution network substation.
